Fasteners & Accessories

#10 Woodzip Fastener

Features a thick bonded E.P.D.M washer for weather tight seal
Metal to wood applications
AVAILABLE IN: 1”, 1-1/2”, 2”, 2-1/2”, 3”
Full DMG85 coating for corrosion resistance
TP-17 point reduces penetration shavings
Packaged 250 pieces per bag

Premium #12 Warranted Woodscrew

Long life stainless steel cap, with 20 year warranty
Metal to wood applications
AVAILABLE IN: 1”, 1-1/2”, 2”, 2-1/2”, 3”
Packaged 250 pieces per bag
Large diameter for extra holding power
Available in standard colors to match panels
More back-out resistance than standard #9 diameter fasteners

#12 Pancake XG Type “A”

With flat head for use with standing seam concealed panel applications
More back-out resistance than #10 fasteners
Concealed panel to wood applications
Available in: 1″, 1-1/2″, 2″
Phillips drive
Extra holding power and zinc plating
Packaged 250 pieces or 2,500 pieces per bag

Premium #12 Warranted Self-Drilling Fasteners

Long life stainless steel with 20 year warranty
Metal to metal applications up to 8 gage
Coated for corrosion resistance
AVAILABLE IN: 1”, 1-1/4”, 1-1/2”, 2”, 2-1/2”, 3”, #14 heavy duty
Packaged 250 pieces per bag
Available with self-drill #5 point for installation into metal substrates up to 1/2” thick

Premium #14 Warranted Stitch/Lap Fasteners

Long life stainless steel with 20 year warranty
Metal to metal applications up to 8 gage
Metal panel and trim to metal panel applications – 5/16” drive
AVAILABLE IN: 7/8” with #1 self-drill point
Packaged 250 pieces per bag
Stitch thread for superior hold

Premium #14 and #17 Warranted Replacement Fasteners

Long life stainless steel with 20 year warranty
Metal to metal and metal to wood applications
Designed to replace old, worn, and rusted fasteners
3/8” drive
Available in #14 heavy duty
Packaged 250 pieces per bag
AVAILABLE IN: #14 x 1”, #14 x 1-1/2”, #14 x 2”, #14 x 2-1/2”, #17 x 1”, #17 x 1-1/2”

Premium #43 Stainless Steel Rivets

With full 300 series stainless steel rivet and mandrel
40-year corrosion warranty
For use with aluminum, copper, or galvalume panels
1/8″ rivets with a grip range of 0.126″ to 0.187″
Concealed panel and trim applications
Packaged 250 pieces or 5,000 pieces per bag

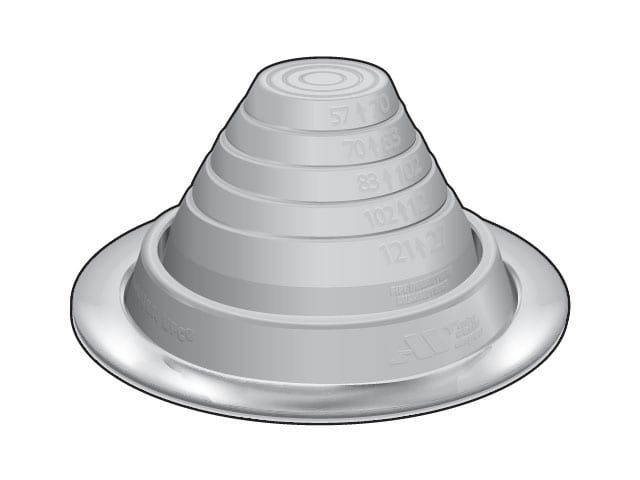

Standard Masterflash EPDM Pipe Flashing Round Grey

With 20-year warranty and UV protection
Waterproofs roof penetrations
Available in: various sizes to fit up to 26″ pipes
Standard #3 fits 1/4″ to 4″ pipes
Packaged 10 pieces per box

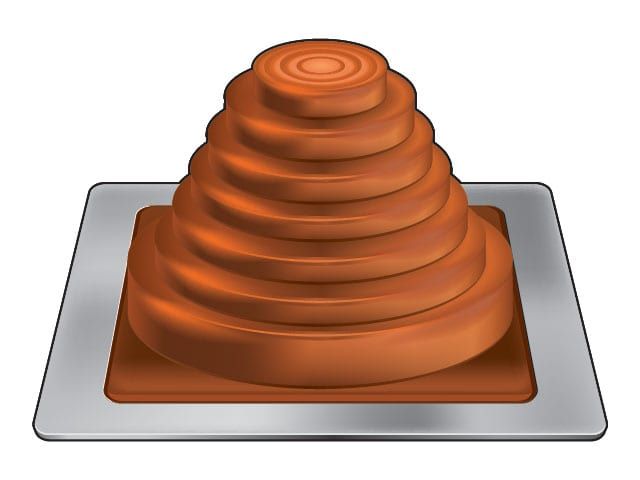

Premium Colored EPDM Pipe Flashing Square Colored

With 20-year warranty and UV protection
Waterproofs roof penetrations
Available in: 11 standard colors
Standard #3 fits 1/4″ to 4″ pipes
Packaged 15 pieces per box

Standard Retrofit Masterflash EPDM Pipe Flashing Square Grey

With 20-year warranty and UV protection
Waterproofs collared pipes and electrical conduit
Available in: various sizes to fit up to 16-1/4″ pipes
Standard #101 fits 1/2″ to 4″ pipes
Packaged 5 pieces per box

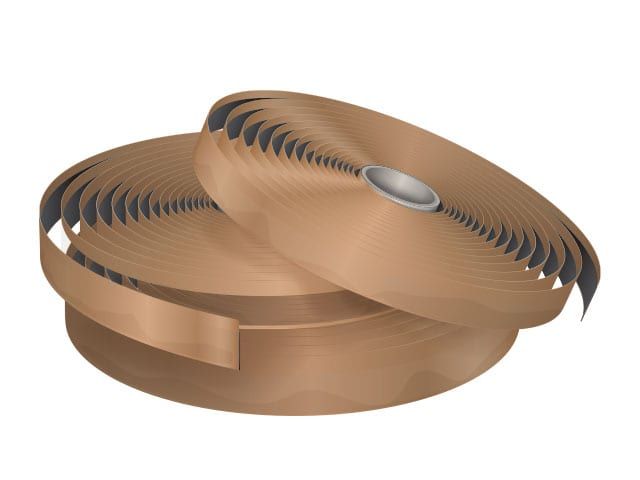

Premium Tacky Tape Butyl Tape Sealant Rolls

Tacky Tape® is 100% solid, asbestos-free butyl tape sealant that is a highly rubbery, tacky, reinforced, compound designed for sealing metal lap joints in the metal building industry. It is easy to apply and compress during installation. It exhibits excellent application and performance characteristics over a wide temperature range and will not become brittle, crack, or flow during service. It is available in various sizes supplied in ready-to-use rolls and pre-cut endlap pads for standing seam roof (SSR) applications. It is also available in double and triple bead rolls and endlap pads.

Tacky Tape® is designed to seal and prevent the entry of dust, air, and moisture and assure a weather-tight seal in metal building details, metal rib and end joints, standing seam roof endlaps, and more.

Available in: 3/32″ x 3/8″ x 45′ rolls — 3/32″ x 1/2″ x 45′ rolls (standard) — 3/32″ x 1″ x 45′ rolls — Double Bead 7/8″ rolls and Triple Bead 2-1/2″ rolls

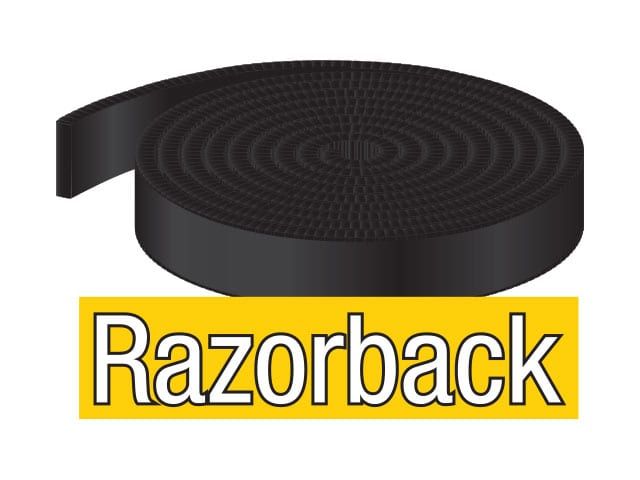

Razorback Ridge Vent Metal Roofing Ridgevent

Universal to fit many panel profiles
Weatherproofs ridge while providing ventilation
Convenient 10\’ rolls with adhesive for easy installation
Florida Building Code approved
110MPH wind driven rain resistance
40-year UV resistant
Available in: 1-1/2″ x 2″ x 10′ rolls (10 rolls/pkg – 100 lnft) — 1-3/4″ x 2″ x 10′ rolls (10 rolls/pkg – 100 lnft special order)

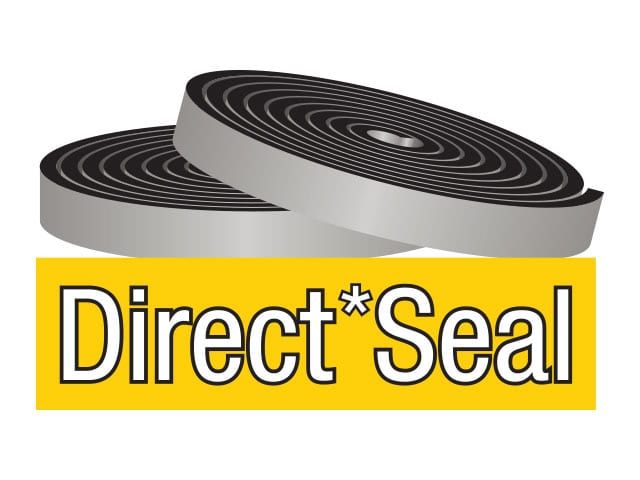

Direct*Seal Longlife Universal Closure Rolls

Universal to fit many panel profiles
Convenient 20\’ rolls with adhesive for easy installation
Seals ends of panel profiles when standard closures cannot be used
Common uses include hips and valleys
40-year UV resistant
Available in: 1″ x 1″ x 20′ rolls — 1-1/2″ x 1-1/2″ x 20′ rolls

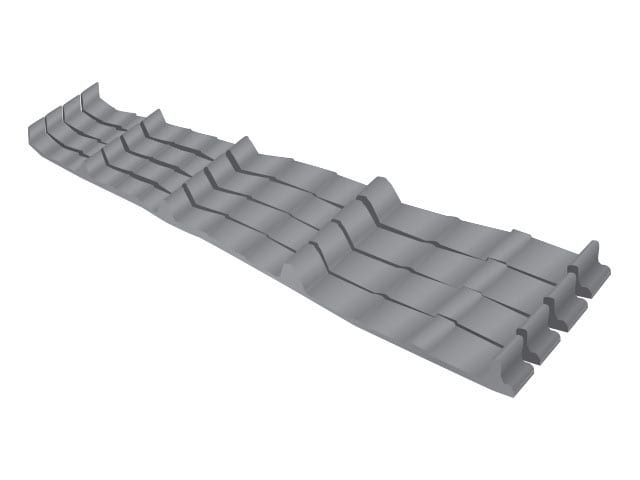

Standard Closure Strips – Die Cut

Cut to fit specific panel profiles
Inside closures for eve / outside closures for ridge
Weatherproofs panel profiles at the eve and ridge
Available with adhesive for easy installation
Available in: 100 pieces per box, length of closure strip will equal your panel width

Various Standard and Premium Sealants Available

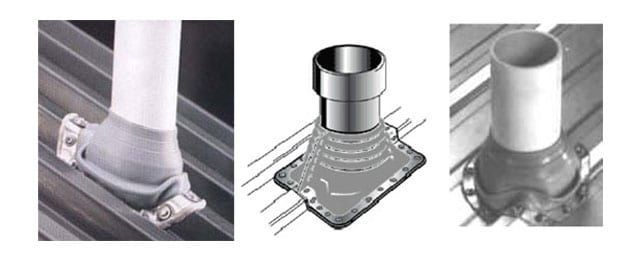

PIPE FLASHINGS, FLASHER, DEKTITE, MASTERFLASH, AND RETROFIT

Designed for metal roofing to flash in pipe penetrations through panels.

Pipe opening can be easily customized on job sight utilizing clearly marked pipe diameters on each flashing
EPDM and Silicone are both flexible materials, resistant to ultraviolet rays, cracking, or weathering
Aluminum base is corrosion resistant and conforms easily to any panel configuration of roof pitch
Retrofit flashings are available for electric conduit, or piping, with welded caps or cross bars

Installation

Ask salesperson for installation instruction sheet.

Instock Sizes

Round Base

Gray EPDM Flasher / Dektite #1, #2, #3, #4, #5, #6, #7, #8, #9
Retrofit Gray EPDM Dektite (Call about sizes)

Square Base

Gray EPDM Flasher / Masterflash – #3
Retrofit EPDM Gray Masterflash – #101
Silicone High Temp Red Masterflash – #3

Specifications

Test Type	EPDM	Silicone
Advance ozone resistance test at 500 PPHM	70 HRS	70 HRS
High temperature Intermittent:	275°F	500°F
High temperature Continuous:	212°F	437°F
Low temperature resistance tested to	-65°F	-100°F
Tensile Strength	1450 PSI	700 PSI

Sizes: Round Base

Size	Fits Pipes	O.D.
#1	1 1/4″ – 2″	4 3/4″
#2	1 3/4″ – 3 1/4″	6 1/4″
#3	1/4″ – 4″	7 3/4″
#4	3″ – 6 1/4″	9 1/4″
#5	4 1/4″ – 7 1/2″	10 3/4″
#6	5″ – 9″	12 1/4″
#7	6″ – 11″	14 1/4″
#8	7″ – 13″	14 1/4″
#9	10″ – 19″	25 1/4″
