Structural sections are manufactured using ASTM A1011 grade 50, class 2 (55 KSI minimum yield) with a red oxide finish or ASTM A653 grade 50, class 2 (55 KSI min yield) with a G90 galvanized finish.

Cee or Zee shapes with web depths of 4″, 6″, 8″, 9″, and 12″ in a variety of symmetrical or unsymmetrical flanges.

Special shape single or double slope, high side or low side eave struts are available. A variety of angles, channels, and hat sections are also available, please inquire.

Contact your sales representative for more information

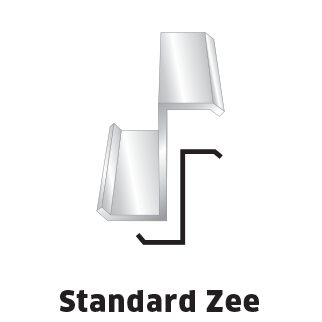

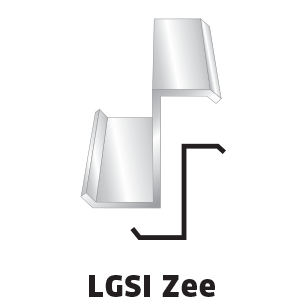

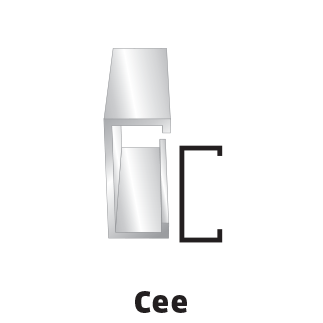

CEES AND ZEES

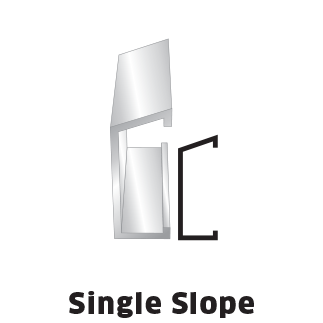

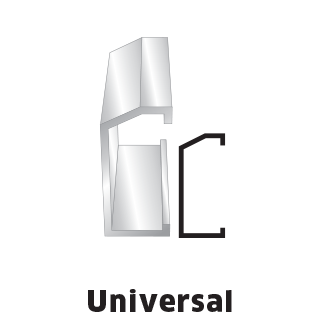

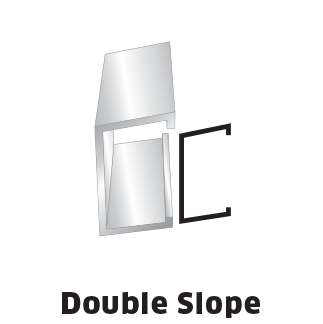

EAVE STRUTS

CHANNELS, HAT SECTIONS, AND BASE ANGLES

Channel

1-1/2″ Channel

1-1/4″ Hat Section

Base Angle

1″ Sub-girt

1-5/8″ Hat Section

Download Secondary Framing (PDF)
